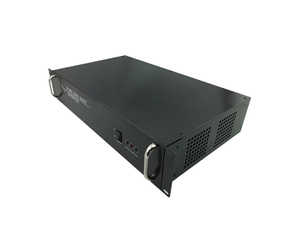

19 Rack Mount Inverter 1000VA

sp12/110-1000VA / sp24/110-1000VA/ sp48/110-1000VA
sp12/220-1000VA / sp24/220-1000VA / sp48/220-1000VA

 19 Rack Mount inverter 1000VA

Model

SP12/120
  -1KVA

SP24/120
  -1KVA

SP48/120
  -1KVA

SP12/220
  -1KVA

SP24/220
  -1KVA

SP48/220
  -1KVA

AC
  Output

Rated Capacity

1000VA

Power Factor

0.85

Voltage

220VAC±5%

Frequency Precision

50HZ±0.1% or 60HZ±0.1%

Output Distortion

Sine wave, THD≤3%

Continuous Power

800W

Continuous Power

1600W

Efficiency(DC to AC)

≥88%


Voltage

12V

24V

48V

12V

24V

48V

DC
  Input

DC Voltage Range

10-15V

20-30V

40-60V

10-15V

20-30V

40-60V

Startup Voltage

10-15V

20-30V

40-60V

10-15V

20-30V

40-60V

AC
  Input

Voltage

100VAC/110VAC/120VAC

220VAC/230VAC/240VAC

Rated current

4.5A

Frequency

50HZ±0.1% or 60HZ±0.1%

Transfer Time

≤9MS

Isolation

PRI-SEC:    1500   VAC, 1min, 10mA

PRI-GND:    1500 VAC,   1min, 10mA

SEC-GND:   1500   VAC, 1min, 10mA

Noise(1m)

<45dB

Operating Temperature Range

-10℃ ~ +55℃

Operating Humidity

0 ~ 90%

Operating Altitude(m)

≤5000m

Color

black

Net Weight

4.5Kg

Gross Weight

5.5 Kg

Dimension

260X482X88(mm)
