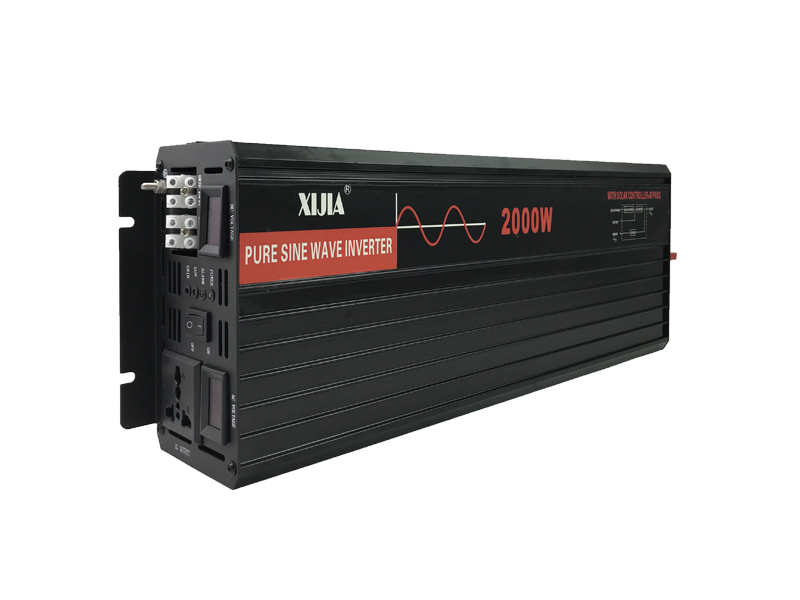

| 2000W solar inverter PWM with bypass |
| Model | SP12/110
-2000LS | SP24/110
-2000LS | SP48/110
-2000LS | SP12/220
-2000LS | SP24/220
-2000LS | SP48/220
-2000LS |
|
| Continuous Power | 2000W |
| Surge Power | 4000W |
| Frequency | 50HZ or 60HZ |
| Wave Form | Pure Sine Wave |
| AC Regulation | THD<3%(Linear Load) |
| Output Efficiency | >90% |
| DC Voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| AC Voltage | 100VAC or 110VAC or 120VAC ±5% | 220VAC or 230VAC or 240VAC ±5% |
| No Load Current Draw | 1.2A | 0.6A | 0.3A | 1.2A | 0.6A | 0.3A |
| DC Voltage Range | 10-15V | 20-30V | 40-60V | 10-15V | 20-30V | 40-60V |
| Low Voltage Shut Down | 10V | 20V | 40V | 10V | 20V | 40V |
| Over Voltage Shut Down | 15V | 30V | 60V | 15V | 30V | 60V |
| Low Voltage Recovery | 12.5V | 25V | 50V | 12.5V | 25V | 50V |
| Floating Charge Voltage | 13.6V | 27.2V | 54.4V | 13.6V | 27.2V | 54.4V |
PV
Input | Charge current | 30A | 20A | 30A | 20A |
solar panels
open-circuit voltage | 18V | 36V | 72V | 18V | 36V | 72V |
|
Range @
open-circuit
voltage (VDC) | <25V | <46V | <90V | <25V | <46V | <90V |
|
| Transfer Time | ≤9MS | ≤9MS | ≤9MS | ≤9MS | ≤9MS | ≤9MS |
| Grid Input Draw | 100VAC or 110VAC or 120VAC ±10% | 220VAC or 230VAC or 240VAC ±10% |
| Protection | Low Voltage/Over Voltage | LED Alarm and Automatic Recovery. |
| Overload | LED Alarm and Automatic Recovery. |
| Over Temperature | LED Alarm and Automatic Recovery. |
| Short Circuit | LED Alarm and Automatic Recovery. |
| Working Temperature | -10°- +70° |
| Storage Temperature | -30°- +70° |
| Production Size | 480*165*85(mm) |
| Package Size | 550*235*150(mm) |
| N.W/G.W | 5.3/6.3(kg) |
| Warranty | 1 Years |
| Cooling Way | Intelligent Cooling Fan |
