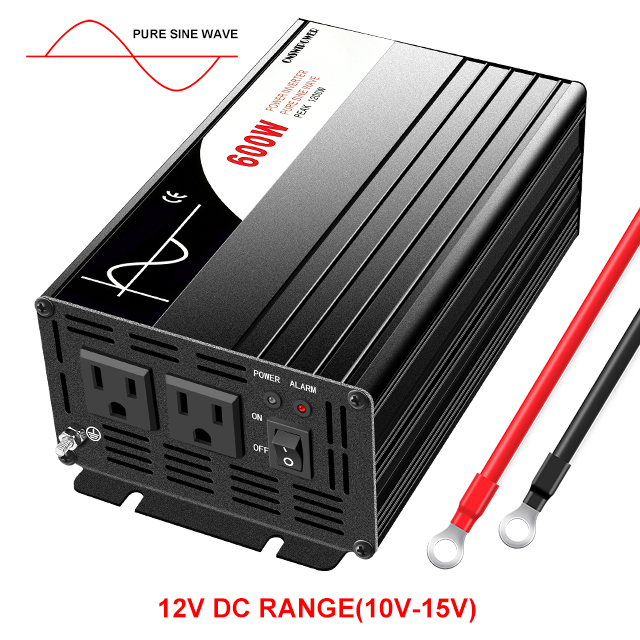

600W Pure Sine Wave Inverter | ||||||
Model | sp12/110-600L | sp24/110-600L | sp48/110-600L | sp12/220-600L | sp12/220-601L | sp48/220-600L |
Continuous Power | 600W | |||||
Surge Power | 1200W | |||||
Frequency | 50HZ±0.5HZ or 60HZ±0.5HZ | |||||
Wave Form | Pure Sine Wave | |||||
AC Regulation | THD<3%(Linear Load) | |||||
Output Efficiency | 0.92 | |||||
DC Voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
AC Voltage | 100+VAC or 110VAC or 120VAC ±5% | 220VAC or 230VAC or 240VAC ±5% | ||||
No Load Current Draw | 0.55A | 0.3A | 0.15A | 0.55A | 0.3A | 0.15A |
DC Voltage Range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V |
Low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V | 10±0.5V | 20±0.5V | 40±1V |
Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V |
Low Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±1V |
Over Voltage Recovery | 14.8V±0.5V | 29V±0.5V | 59V±1V | 14.8V±0.5V | 29V±0.5V | 59V±1V |
Protection | Low Voltage/Over Voltage | LED Alarm and Automatic Recovery. | ||||
Overload | LED Alarm and Automatic Recovery. | |||||
Over Temperature | LED Alarm and Automatic Recovery. | |||||
Short Circuit | LED Alarm and Automatic Recovery. | |||||
Working Temperature | -10°- +50° | |||||
Storage Temperature | -30°- +70° | |||||

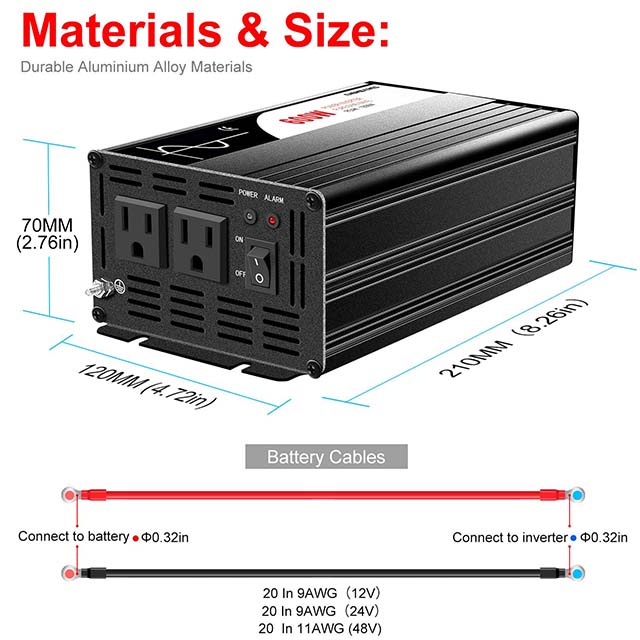

Production Size | 233*114*55(mm) | |||||
Package Size | 260*160*70(mm) | |||||
N.W/G.W | 1.1/1.3(kg) | |||||
Start | soft-start | |||||
Qty/Carton | 6 | |||||
Carton Size | 260×160×70 | |||||
Carton Weight | 1.3KG | |||||
Warranty | 1 Years | |||||

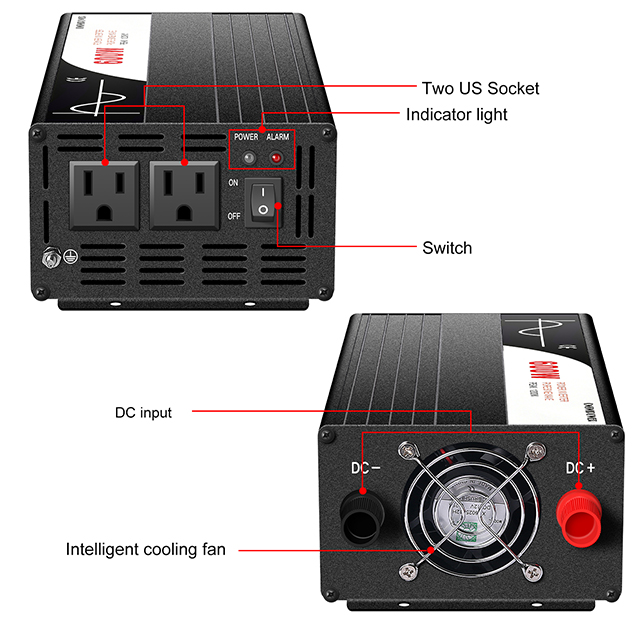

Cooling Way | Intelligent Cooling Fan |
