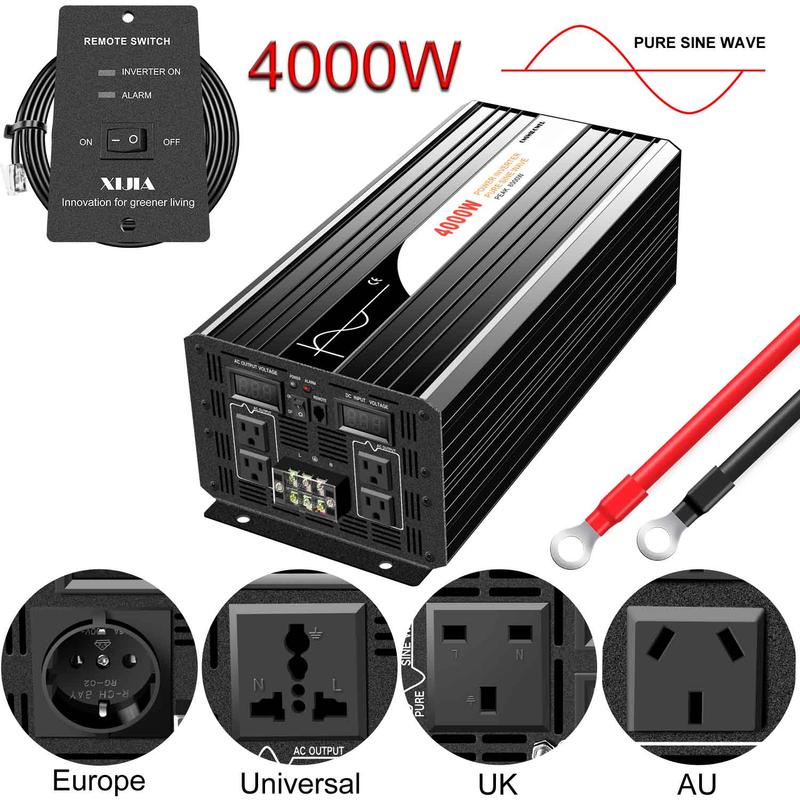

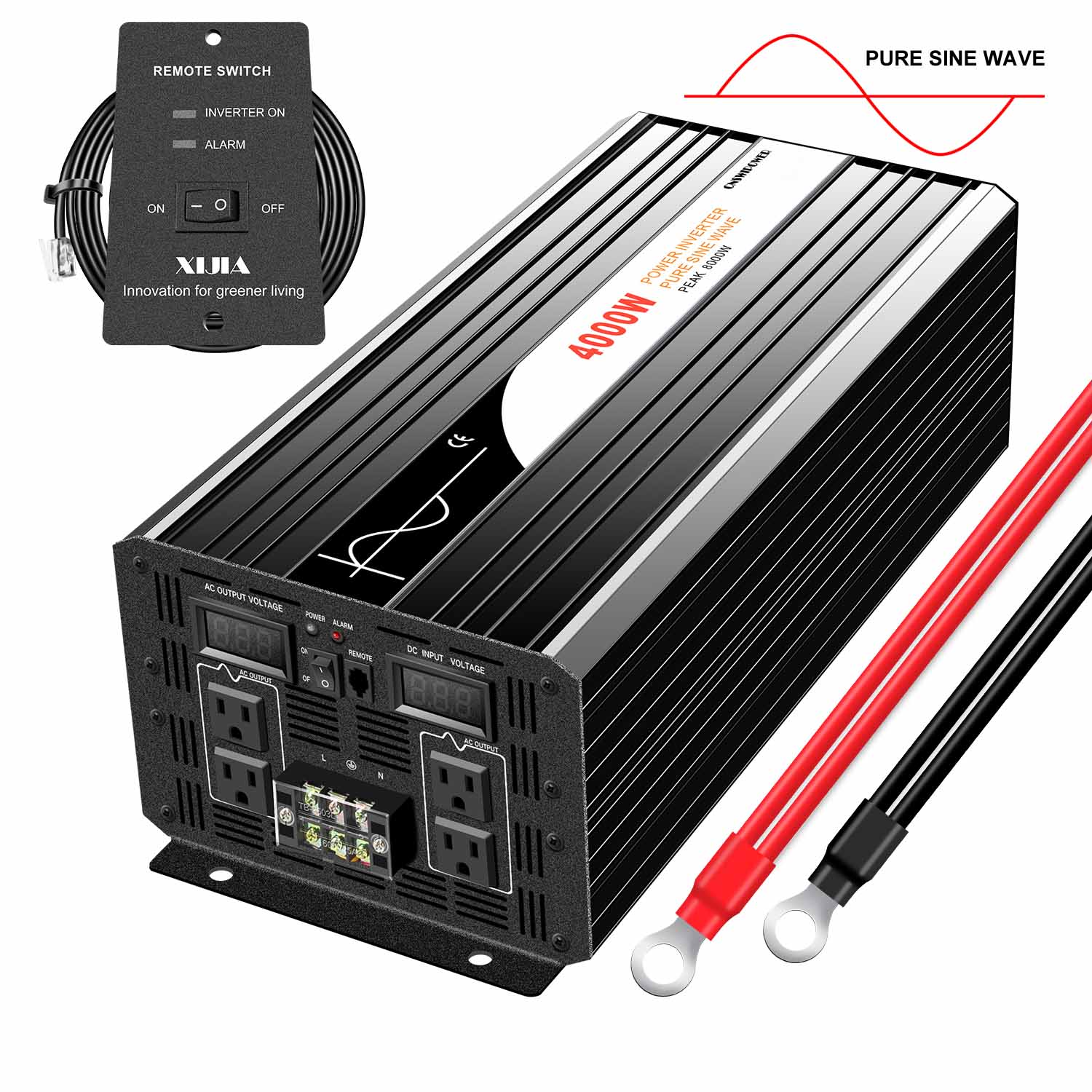

4000W pure sine wave inverter

sp12/110-4000L / sp24/110-4000L / sp48/110-4000L
sp12/220-4000L / sp24/220-4000L / sp48/220-4000L
Availability:
Inquiry

365宣传图724000W

Model sp12/120-4000L sp24/120-4000L sp48/120--4000L sp12/230--4000L sp24/230-4000L sp48/230--4000L
Continuous Power 4000W
Surge Power 8000W
Frequency 50HZ±0.5HZ or 60HZ±0.5HZ
Wave Form Pure Sine Wave
AC Regulation THD<3%(Linear Load)
Output Efficiency 92%
DC Voltage DC12V DC24V DC48V DC12V DC24V DC48V
AC Voltage 120VAC±5% 230VAC±5%
No Load Current Draw 2.8a 1.4a 0.7a 2.8a 1.4a 0.7a
DC Voltage Range 10-15V 20-30V 40-60V 10-15V 20-30V 40-60V
Low Voltage Shut Down 10±0.5V 20±0.5V 40±1V 10±0.5V 20±0.5V 40±1V
Over Voltage Shut Down 15±0.5V 30±0.5V 60±1V 15±0.5V 30±0.5V 60±1V
Low Voltage Recovery 12.5V 25V 50V 12.5V 25V 50V
Protection Low Voltage/Over Voltage LED Alarm and Automatic Recovery.
Overload LED Alarm and Automatic Recovery.
Over Temperature LED Alarm and Automatic Recovery.
Short Circuit LED Alarm and Automatic Recovery.
Working Temperature -10°- +50°
Storage Temperature -30°- +70°
Production Size 420*217*155(mm)
Package Size 570*300*245(mm)
N.W/G.W 9.8/ 12(kg)
Start soft-start
Cooling Way Intelligent Cooling Fan
