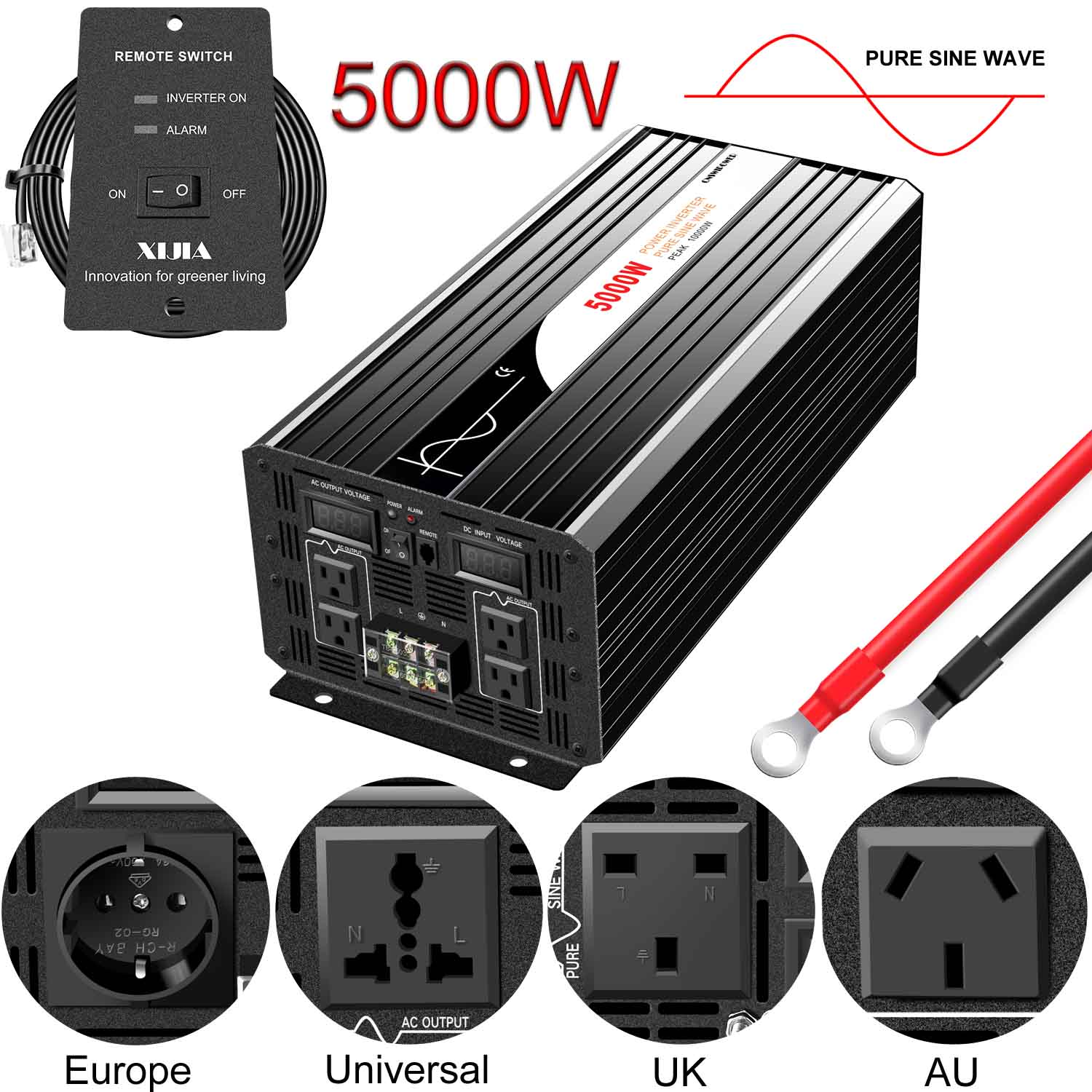

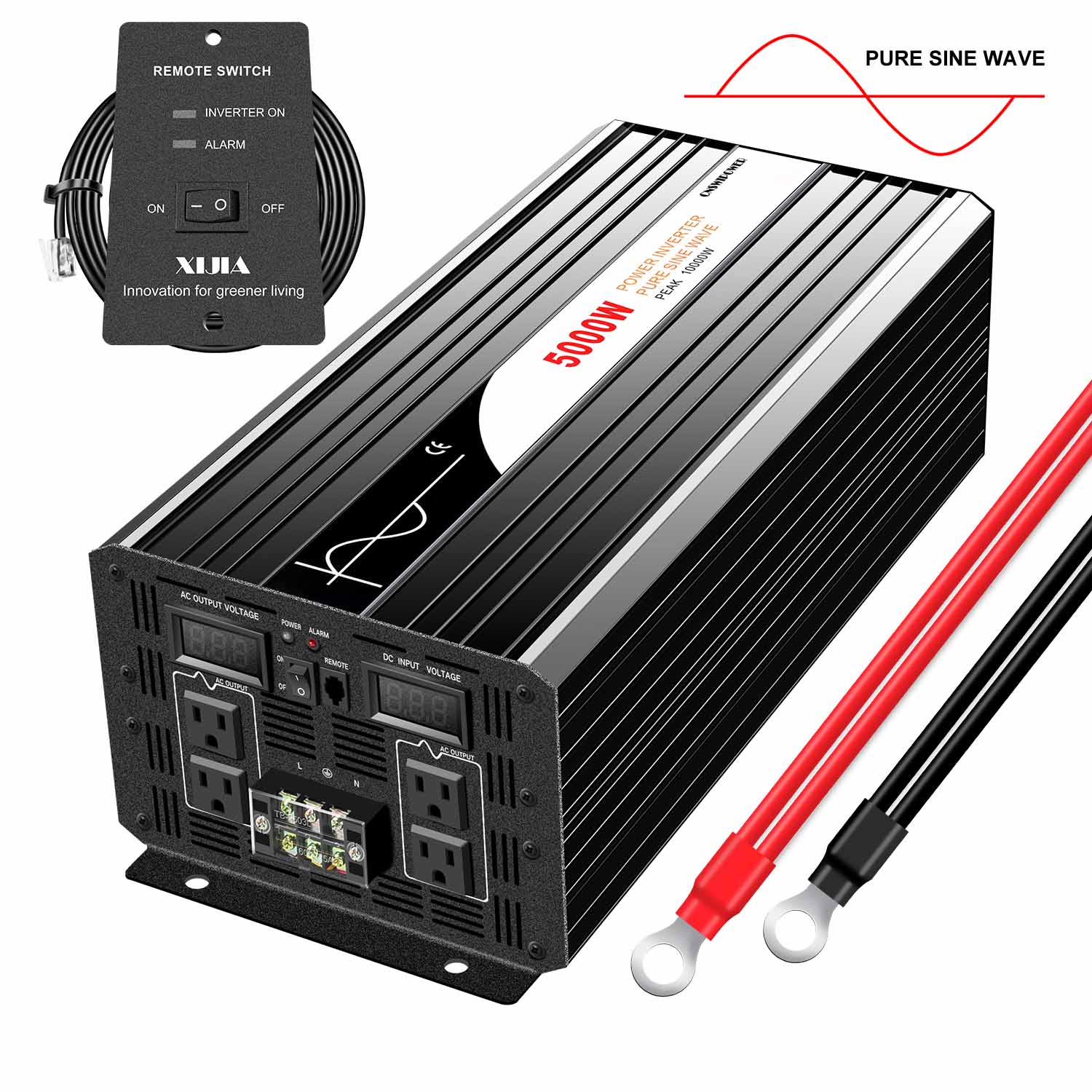

5000W pure sine wave inverter

sp12/110-5000L / sp24/110-5000L / sp48/110-5000L
sp12/220-5000L / sp24/220-5000L / sp48/220-5000L

365宣传图725000W

Model sp12/120-6000L sp24/120-6000L sp48/120--6000L sp12/230--6000L sp24/230-6000L sp48/230--6000L
Continuous Power 6000W
Surge Power 12000W
Frequency 50HZ±0.5HZ or 60HZ±0.5HZ
Wave Form Pure Sine Wave
AC Regulation THD<3%(Linear Load)
Output Efficiency 92%
DC Voltage DC12V DC24V DC48V DC12V DC24V DC48V
AC Voltage  120VAC ±5%  230VAC ±5%
No Load Current Draw 3.6a 1.8a 0.9a 3.6a 1.8a 0.9a
DC Voltage Range 10-15V 20-30V 40-60V 10-15V 20-30V 40-60V
Low Voltage Shut Down 10±0.5V 20±0.5V 40±1V 10±0.5V 20±0.5V 40±1V
Over Voltage Shut Down 15±0.5V 30±0.5V 60±1V 15±0.5V 30±0.5V 60±1V
Low Voltage Recovery 12.5V 25V 50V 12.5V 25V 50V

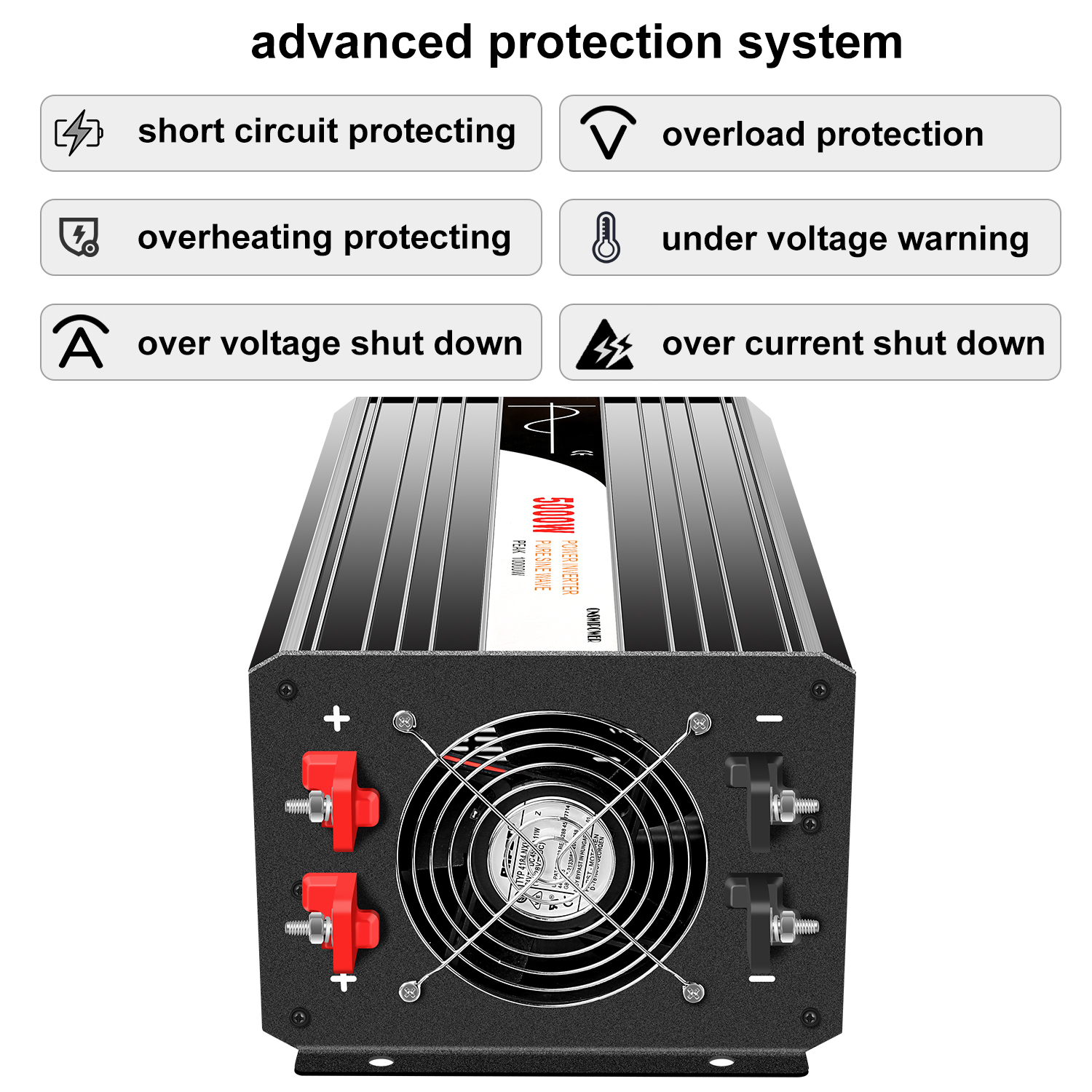

Protection Low Voltage/Over Voltage LED Alarm and Automatic Recovery.
Overload LED Alarm and Automatic Recovery.
Over Temperature LED Alarm and Automatic Recovery.
Short Circuit LED Alarm and Automatic Recovery.
Working Temperature -10°- +50°
Storage Temperature -30°- +70°

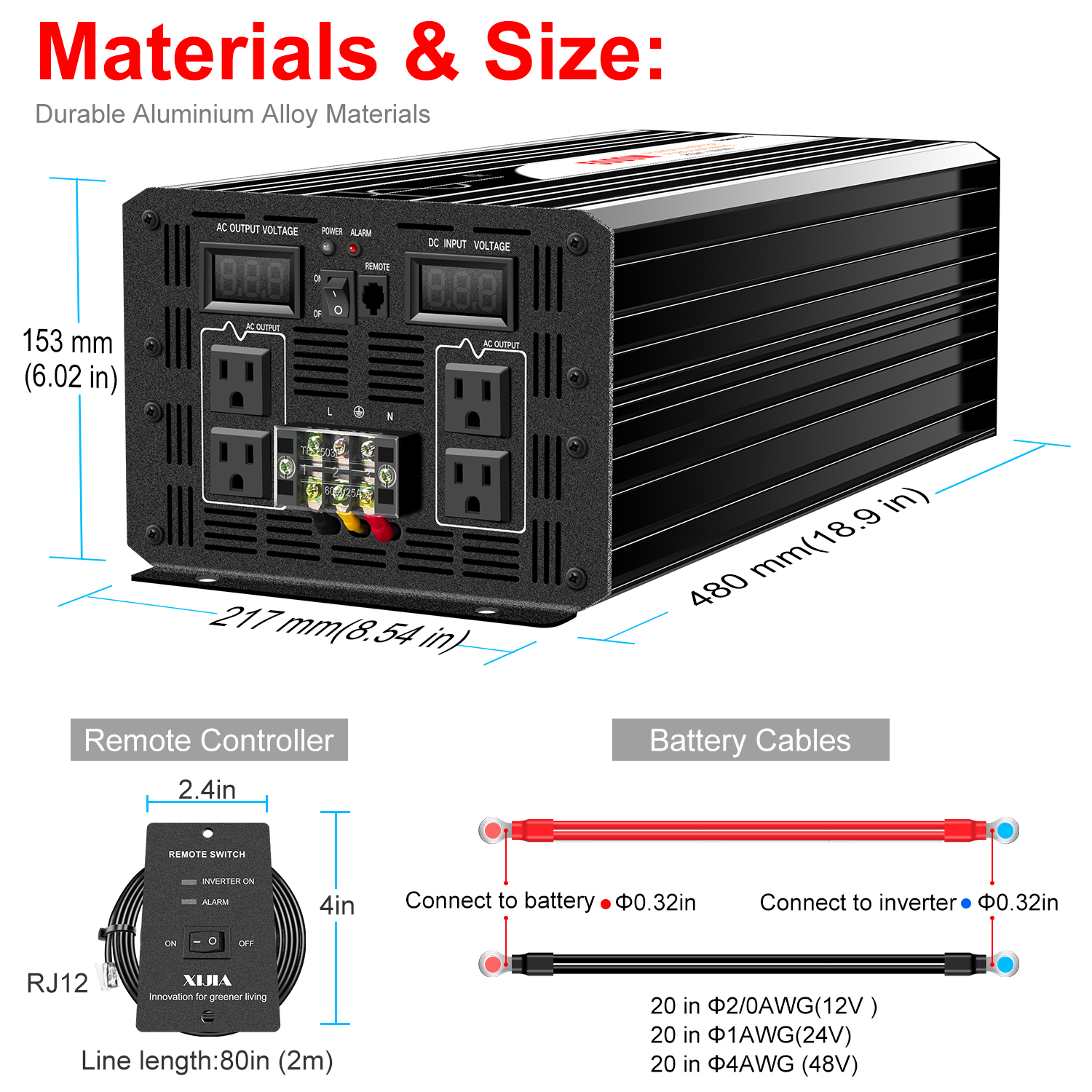

Production Size 420*217*155(mm)
Package Size 570*300*245(mm)
N.W/G.W 11/ 13.5(kg)
Start soft-start
Cooling Way Intelligent Cooling Fan
