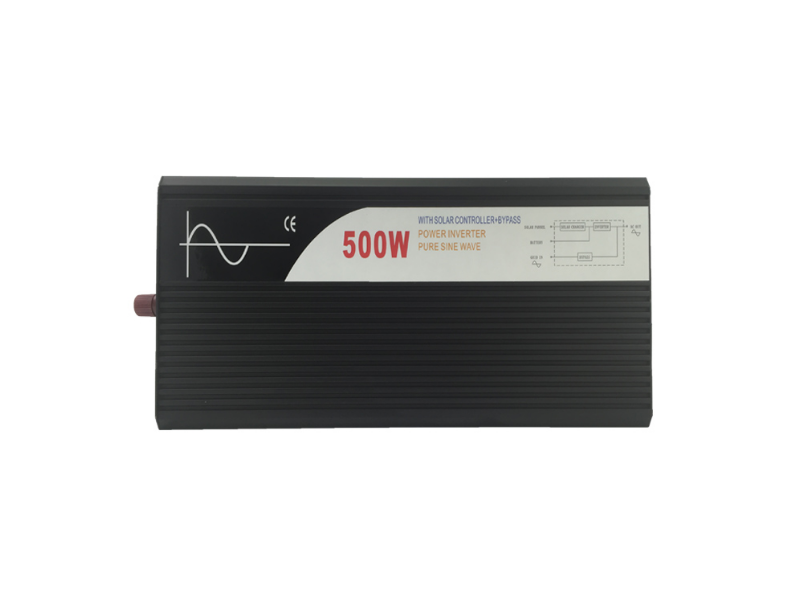

500W Solar Inverter PWM with Bypass

sp12/110-500L / sp24/110-500L / sp48/110-500L
sp12/220-500L / sp24/220-500L / sp48/220-500L

500W solar inverter PWM with bypass

Model

SP12/110
-500LS

SP24/110
-500LS

SP48/110
-500LS

SP12/220
-500LS

SP24/220
-500LS

SP48/220
-500LS




Continuous Power

500W

Surge Power

1000W

Frequency

50HZ±0.5HZ or 60HZ±0.5HZ

Wave Form

Pure Sine Wave

AC Regulation

THD<3%(Linear Load)

Output Efficiency

>90%

DC Voltage

DC12V

DC24V

DC48V

DC12V

DC24V

DC48V




AC Voltage

100VAC or 110VAC or 120VAC ±5%

220VAC or 230VAC or 240VAC ±5%

No Load Current Draw

0.55A

0.3A

0.15A

0.55A

0.3A

0.15A




DC Voltage Range

10-15.5V

20-31V

40-61V

10-15.5V

20-31V

40-61V




Low Voltage Alarm

10.5±0.5V

21±0.5V

42±1V

10.5±0.5V

21±0.5V

42±1V




Low Voltage Shut Down

10±0.5V

20±0.5V

40±1V

10±0.5V

20±0.5V

40±1V




Over Voltage Shut Down

15.5±0.5V

31±0.5V

61±1V

15.5±0.5V

31±0.5V

61±1V




Low Voltage Recovery

13±0.5V

24±0.5V

48±1V

13±0.5V

24±0.5V

48±1V




Over Voltage Recovery

14.8V±0.5V

29V±0.5V

59V±1V

14.8V±0.5V

29V±0.5V

59V±1V




Floating Charge Voltage

13.6V

27.2V

54.4V

13.6V

27.2V

54.4V




PV
Input

Charge current

30A

20A

30A

20A


solar panels open-circuit voltage

18V

36V

72V

18V

36V

72V





Range @ open-circuit voltage (VDC)

<25V

<46V

<90V

<25V

<46V

<90V





Transfer Time

≤9MS

≤9MS

≤9MS

≤9MS

≤9MS

≤9MS





Grid Input Draw

100VAC or 110VAC or 120VAC ±10%

220VAC or 230VAC or 240VAC ±10%

Protection

Low Voltage/Over Voltage

LED Alarm and Automatic Recovery.

Overload

LED Alarm and Automatic Recovery.

Over Temperature

LED Alarm and Automatic Recovery.

Short Circuit

LED Alarm and Automatic Recovery.

Working Temperature

-10°- +70°

Storage Temperature

-30°- +70°

Production Size

365*165*85(mm)

Package Size

420*240*150(mm)

N.W/G.W

3.40/4.2(kg)

Warranty

1 Years

Cooling Way

Intelligent Cooling Fan
