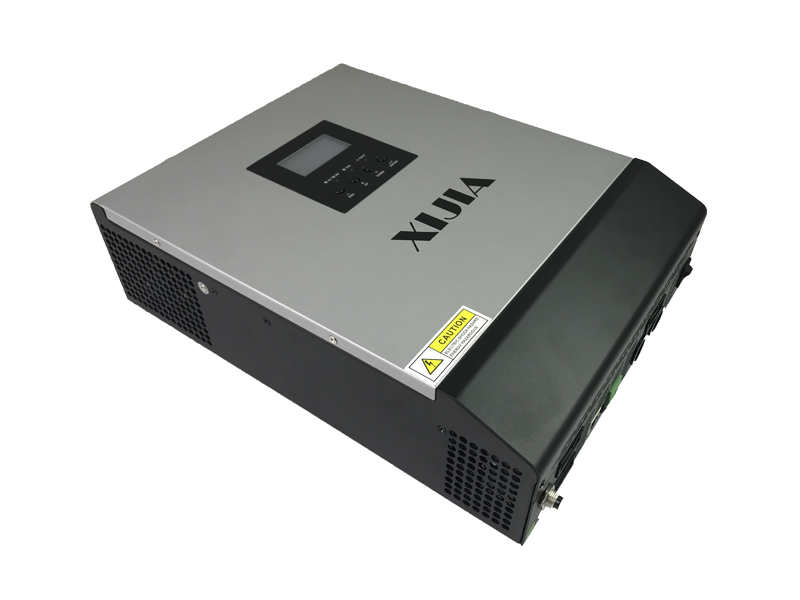

hybrid inverter 3000VA MPPT |
Model NO. | SP-3KVA |
Rated Power | 3000VA/2400W |
INPUT | Phase&waveform | 230 VAC |
Voltage selectable range
(for Personal Computer) | 170~280 VAC |
Voltage selectable range
(for home appliance) | 90~280 VAC |
Frequency range | 50Hz/60Hz (Auto sensing) |
OUTPUT | AC voltage Regulation
(Batt.Mode) | 230V AC ± 5% |
Surge Power | 6000VA |
Efficiency (Peak) | 93% |
Transfer time | 10ms (for personal computer),20ms (for home appliance) |
Wave form | Pure sine wave |
Battery& AC Charger | Battery voltage | 24VDC |
Floating charge Voltage | 27VDC |
Overcharge Protection | 30VDC |
Maximum Charge Current | 20A or 30A |
PV Input | Charge current(MPPT) | 25A |
MAX PV array power | 600W |
Range @
Operating Voltage (VDC) | 60 VDC |
Standy powr consumption | 2W |
Physical | Carton Size, D×W×H (mm) | 440*360*220 |
Gross Weight (Kgs) | 8.9 |
Environmental | Humidity | 5%~95% Relative Humidity (Non-condensing) |
Operation Temperature | 0℃~55℃ |
Storage Temperature | -15℃~60℃ |
