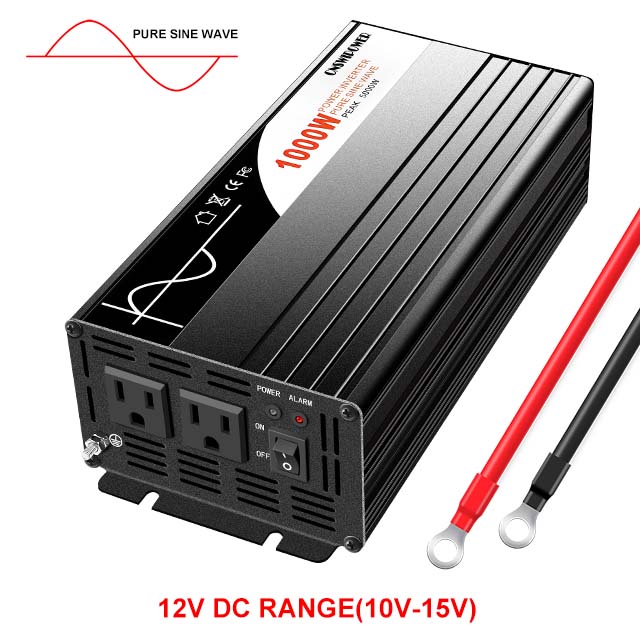

1000W Pure Sine Wave Inverter |
Model | sp12/110-1000L | sp24/110-1000L | sp48/110-1000L | sp12/220-1000L | sp24/220-1000L | sp48/220-1000L |
Continuous Power | 1000W |
Surge Power | 2000W |
Frequency | 50HZ±0.5HZ or 60HZ±0.5HZ |
Wave Form | Pure Sine Wave |
AC Regulation | THD<3%(Linear Load) |
Output Efficiency | 92% |
DC Voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
AC Voltage | 100VAC or 110VAC or 120VAC ±5% | 220VAC or 230VAC or 240VAC ±5% |
No Load Current Draw | 0.8A | 0.4A | 0.2A | 0.8A | 0.4A | 0.2A |
DC Voltage Range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V |
Low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V | 10±0.5V | 20±0.5V | 40±1V |
Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V |
Low Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±1V |
Over Voltage Recovery | 14.8V±0.5V | 29V±0.5V | 59V±1V | 14.8V±0.5V | 29V±0.5V | 59V±1V |
Protection
| Low Voltage/Over Voltage | LED Alarm and Automatic Recovery. |
Overload | LED Alarm and Automatic Recovery. |
Over Temperature | LED Alarm and Automatic Recovery. |
Short Circuit | LED Alarm and Automatic Recovery. |
Working Temperature | -10°- +50° |
Storage Temperature | -30°- +70° |
Production Size | 305*165*85(mm) |
Package Size | 360*240*150(mm) |
N.W/G.W | 3.12/3.5(kg) |
Start | soft-start |
Qty/Carton | 4 |
Carton Size | 440×475×335 |
Carton Weight | 17.2KG |
Warranty | 1 Years |
Cooling Way | Intelligent Cooling Fan |
