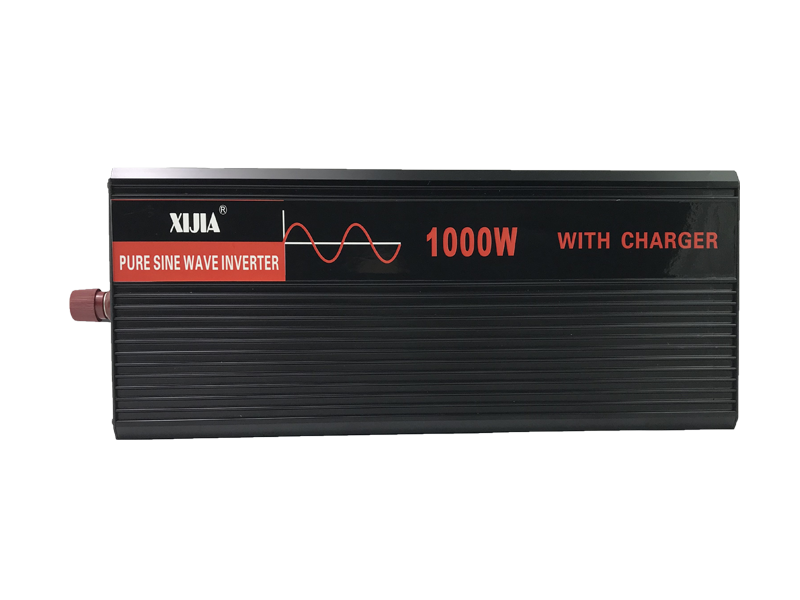

UPS 1000W Pure Sine Wave Inverter with Charger

sp12/220-1000L / sp24/220-1000L / sp48/220-1000L

UPS 1000W pure sine wave inverter with charger

Model

sp12/220-1000LC

sp24/220-1000LC

sp48/220-1000LC

Continuous Power

1000W

Surge Power

2000W

Frequency

50HZ or 60HZ

Wave Form

Pure Sine Wave

AC Regulation

THD<3%(Linear Load)

Output Efficiency

92%

DC Voltage

DC12V

DC24V

DC48V

AC Voltage

220V AC

No Load Current Draw

0.8A

0.4A

0.2A

DC Voltage Range

10-15V

20-30V

40-60V

Low Voltage Shut Down

10V

20V

40V

Over Voltage Shut Down

15V

30V

60V

Low Voltage Recovery

12.5V

25V

50V

Over Voltage Recovery

15V

30V

60V

Charging Voltage

14.6V

29.2V

58.4V

Floating Charge Voltage

13.8V

27.6V

55V

Charging Current

≤10A

≤5A

≤2.5A

Transfer Time

≤9MS

≤9MS

≤9MS

Grid Input Draw

220V AC

Protection

Low Voltage/Over Voltage

LED Alarm and Automatic Recovery.

Overload

LED Alarm and Automatic Recovery.

Over Temperature

LED Alarm and Automatic Recovery.

Short Circuit

LED Alarm and Automatic Recovery.

Working Temperature

-10°- +50°

Storage Temperature

-30°- +70°

Production Size

415*165*85(mm)

Package Size

550*235*150(mm)

N.W/G.W

4.30/5.26(kg)

Warranty

1 Years

Cooling Way

Intelligent Cooling Fan
