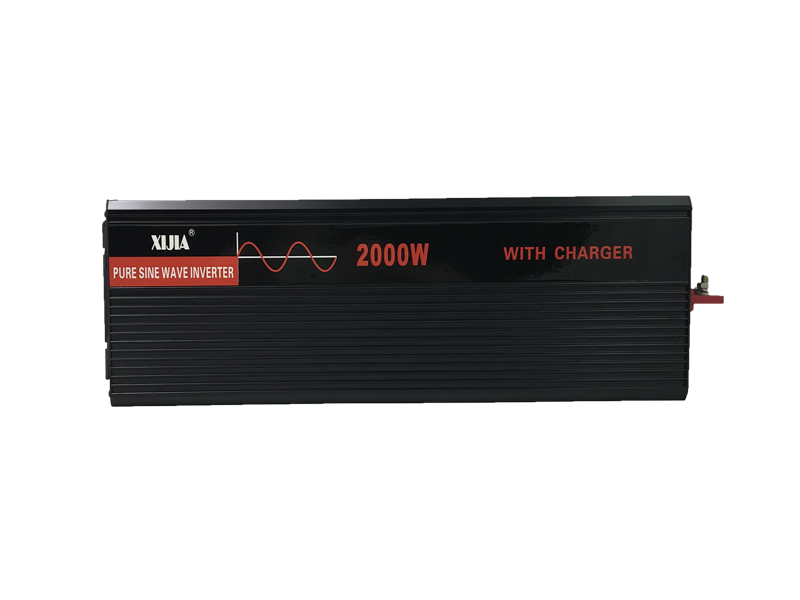

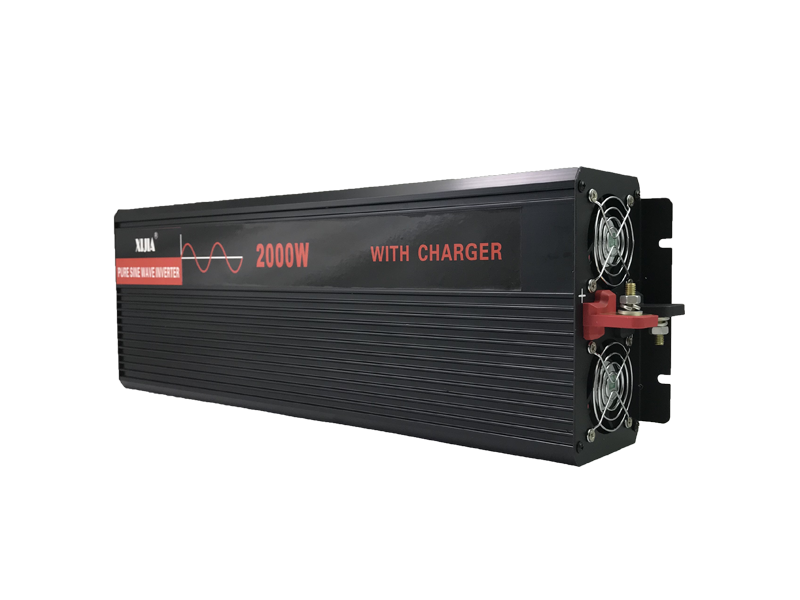

UPS 2000W Pure Sine Wave Inverter with Charger

sp12/220-2000L / sp24/220-2000L / sp48/220-2000L
UPS 2000W pure sine wave inverter with charger
Modelsp12/220-2000LCsp24/220-2000LCsp48/220-2000LC
Continuous Power2000W
Surge Power4000W
Frequency50HZ or 60HZ
Wave FormPure Sine Wave
AC RegulationTHD<3%(Linear Load)
Output Efficiency92%
DC VoltageDC12VDC24VDC48V
AC Voltage220VAC
No Load Current Draw1.2a0.6a0.3a
DC Voltage Range10-15V20-30V40-60V
Low Voltage Shut Down10V20V40V
Over Voltage Shut Down15V30V60V
Low Voltage Recovery12.5V25V50V
Charging Voltage14.6V29.2V58.4V
Floating Charge Voltage13.8V27.6V55V
Charging Current≤10A≤5A≤2.5A
Transfer Time≤9MS≤9MS≤9MS
Grid Input Draw220VAC
ProtectionLow Voltage/Over VoltageLED Alarm and Automatic Recovery.
OverloadLED Alarm and Automatic Recovery.
Over TemperatureLED Alarm and Automatic Recovery.
Short CircuitLED Alarm and Automatic Recovery.
Working Temperature-10°- +50°
Storage Temperature-30°- +70°
Production Size560*165*85(mm)
Package Size650*235*185(mm)
N.W/G.W6.1/ 6.5(kg)
Warranty1Years
Cooling WayIntelligent Cooling Fan
