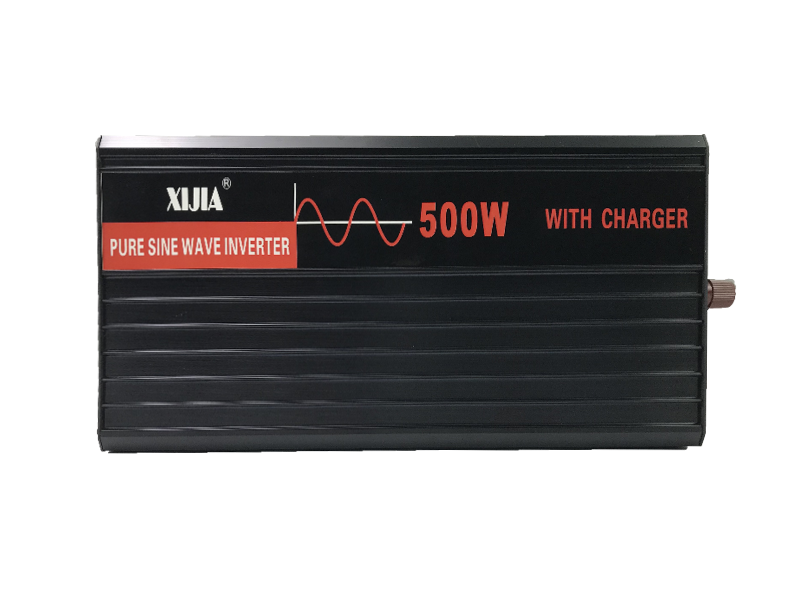

UPS 500W Pure Sine Wave Inverter with Charger

UPS 500W pure sine wave inverter with charger
Modelsp12/220-500LCsp24/220-500LCsp48/220-500LC
Continuous Power500W
Surge Power1000W
Frequency50HZ or 60HZ
Wave FormPure Sine Wave
AC RegulationTHD<3%(Linear Load)
Output Efficiency92%
DC VoltageDC12VDC24VDC48V
AC Voltage220VAC  ±5%
No Load Current Draw0.55A0.3A0.15A
DC Voltage Range10-15V20-30V40-60V
Low Voltage Shut Down10V20V40V
Over Voltage Shut Down15V30V60V
Low Voltage Recovery12.5V25V50V
Charging Voltage14.6V29.2V58.4V
Floating Charge Voltage13.6V27.2V54.4V
Charging Current≤10A≤5A≤2.5A
Transfer Time≤9MS≤9MS≤9MS
Grid Input Draw220VAC  ±10%
ProtectionLow Voltage/Over VoltageLED Alarm and Automatic Recovery.
OverloadLED Alarm and Automatic Recovery.
Over TemperatureLED Alarm and Automatic Recovery.
Short CircuitLED Alarm and Automatic Recovery.
Working Temperature-10°- +50°
Storage Temperature-30°- +70°
Production Size365*165*85(mm)
Package Size420*240*150(mm)
N.W/G.W3.4/4.2(kg)
Warranty1 Years
Cooling WayIntelligent Cooling Fan
