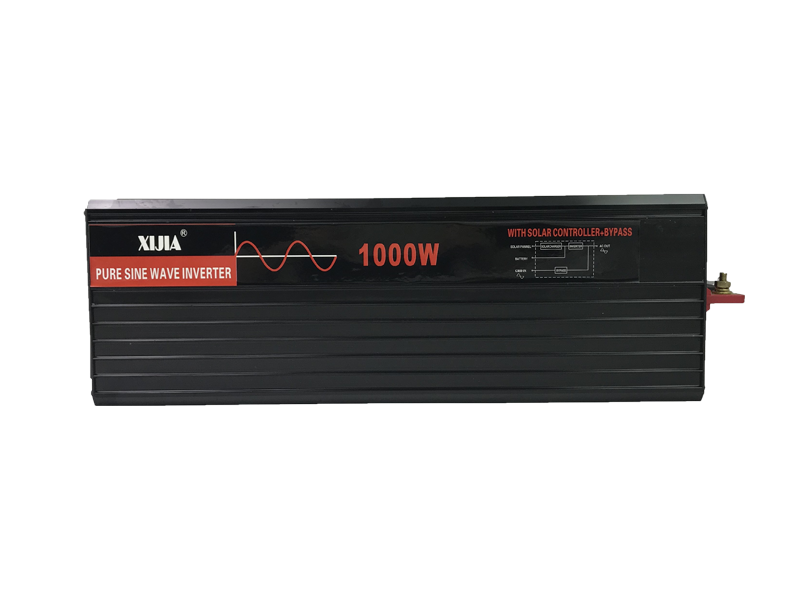

1000W Solar Inverter PWM with Bypass

sp12/110-1000L / sp24/110-1000L / sp48/110-1000L
sp12/220-1000L / sp24/220-1000L / sp48/220-1000L
Availability:
1000W solar inverter PWM with bypass
ModelSP12/110
-1000LS
SP24/110
-1000LS
SP48/110
-1000LS
SP12/220
-1000LS
SP24/220
-1000LS
SP48/220
-1000LS
Continuous Power1000W
Surge Power2000W
Frequency50HZ or 60HZ
Wave FormPure Sine Wave
AC RegulationTHD<3%(Linear Load)
Output Efficiency>90%
DC VoltageDC12VDC24VDC48VDC12VDC24VDC48V
AC Voltage100VAC or 110VAC or 120VAC ±5%220VAC or 230VAC or 240VAC ±5%
No Load Current Draw0.8A0.4A0.2A0.8A0.4A0.2A
DC Voltage Range10-15V20-30V40-60V10-15V20-30V40-60V
Low Voltage Shut Down10V20V40V10V20V40V
Over Voltage Shut Down15V30V60V15V30V60V
Low Voltage Recovery12.5V25V50V12.5V25V50V
Floating Charge Voltage13.6V27.2V54.4V13.6V27.2V54.4V
PV
Input
Charge current30A20A30A20A
solar panels
open-circuit voltage
18V36V72V18V36V72V
Range @
open-circuit
voltage (VDC)
<25V<46V<90V<25V<46V<90V

Transfer Time≤9MS≤9MS≤9MS≤9MS≤9MS≤9MS
Grid Input Draw100VAC or 110VAC or 120VAC ±10%220VAC or 230VAC or 240VAC ±10%
ProtectionLow Voltage/Over VoltageLED Alarm and Automatic Recovery.
OverloadLED Alarm and Automatic Recovery.
Over TemperatureLED Alarm and Automatic Recovery.
Short CircuitLED Alarm and Automatic Recovery.
Working Temperature-10°- +70°
Storage Temperature-30°- +70°
Production Size415*165*85(mm)
Package Size550*235*150(mm)
N.W/G.W4.30/5.1(kg)
Warranty1 Years
Cooling WayIntelligent Cooling Fan
