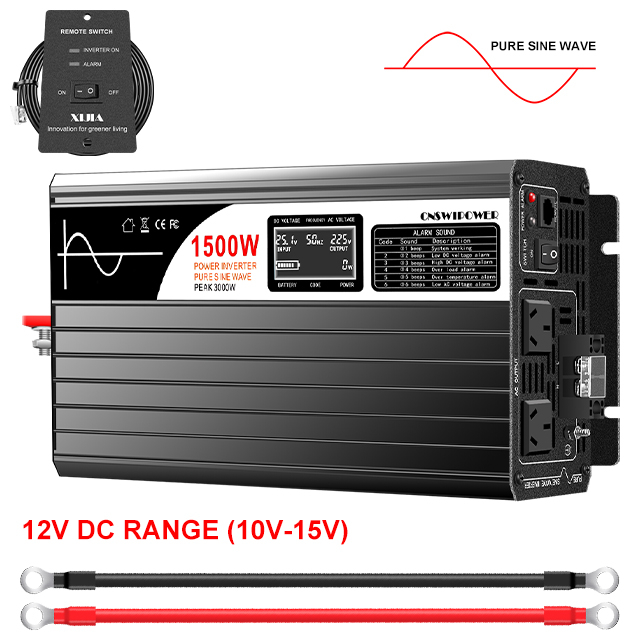

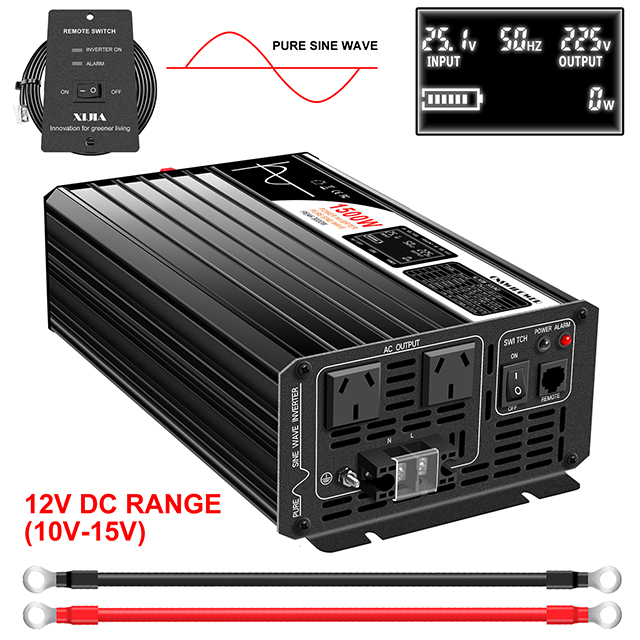

Inverter 1500W 12V Pure Sine Wave

sp12/110-1500L / sp24/110-1500L / sp48/110-1500L
sp12/220-1500L / sp24/220-1500L / sp48/220-1500L
Availability:
Inquiry

  • SP12/24/48-1500L

  • CNSWIPOWER



Model sp12/110-1500L sp24/110-1500L sp48/110-1500L sp12/220-1500L sp24/220-1500L sp48/220-1500L
Continuous Power 1500W
Surge Power 3000W
Frequency 50HZ±0.5HZ or 60HZ±0.5HZ
Wave Form Pure Sine Wave
AC Regulation THD<3%(Linear Load)
Output Efficiency 92%
DC Voltage DC12V DC24V DC48V DC12V DC24V DC48V
AC Voltage 120VAC ±5% 230VAC ±5%
No Load Current Draw 0.9A 0.45A 0.25A 0.9A 0.45A 0.25A
DC Voltage Range 10-15V 20-30V 40-60V 10-15V 20-30V 40-60V
Low Voltage Shut Down 10±0.5V 20±0.5V 40±1V 10±0.5V 20±0.5V 40±1V
Over Voltage Shut Down 15±0.5V 30±0.5V 60±1V 15±0.5V 30±0.5V 60±1V
Low Voltage Recovery 12.5V 25V 50V 12.5V 25V 50V
Protection Low Voltage/Over Voltage LED Alarm and Automatic Recovery.
Overload LED Alarm and Automatic Recovery.
Over Temperature LED Alarm and Automatic Recovery.
Short Circuit LED Alarm and Automatic Recovery.
Working Temperature -10°- +50°
Storage Temperature -30°- +70°

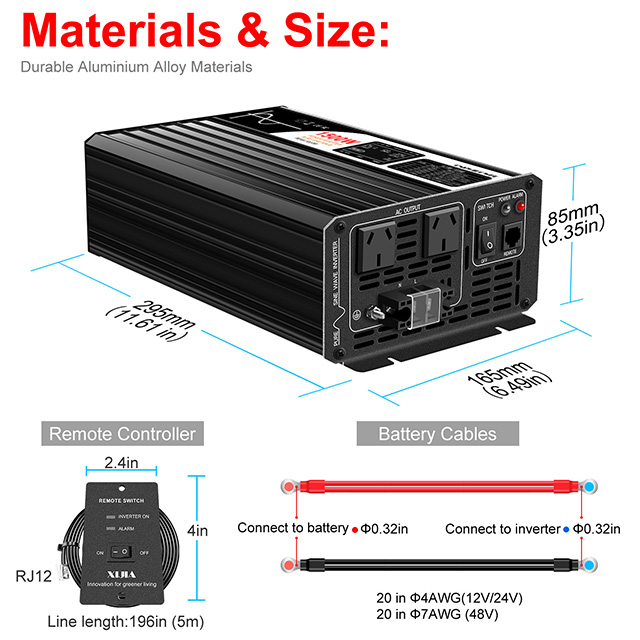

Production Size 300*165*85(mm)
Package Size 350*235*150(mm)
N.W/G.W 2.8/3.5(kg)
Start soft-start

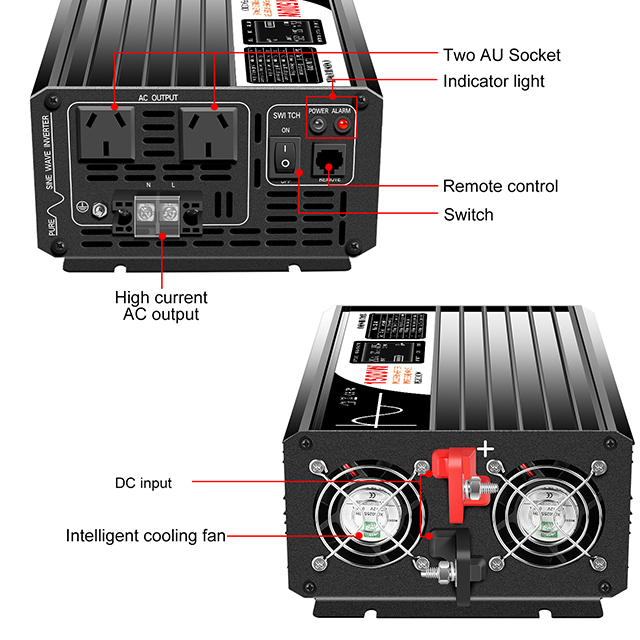

Cooling Way Intelligent Cooling Fan

1500 LCD AU 11500 LCD AU 21500 LCD AU 31500 LCD AU 41500 LCD AU 51500 LCD AU 6
