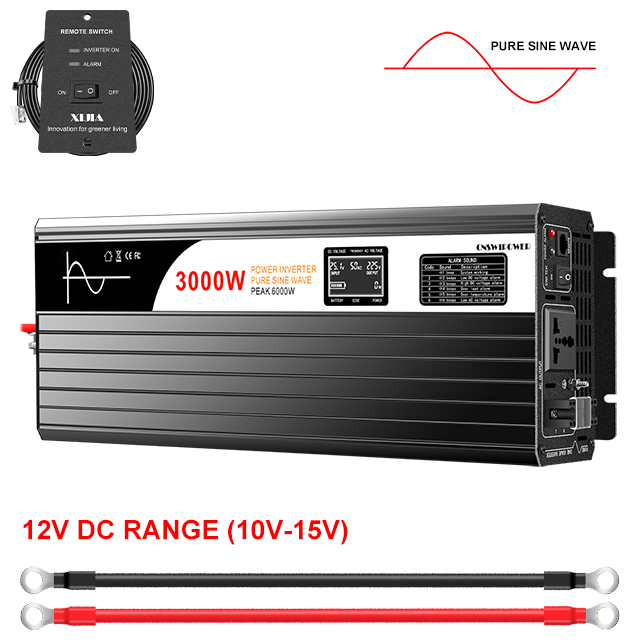

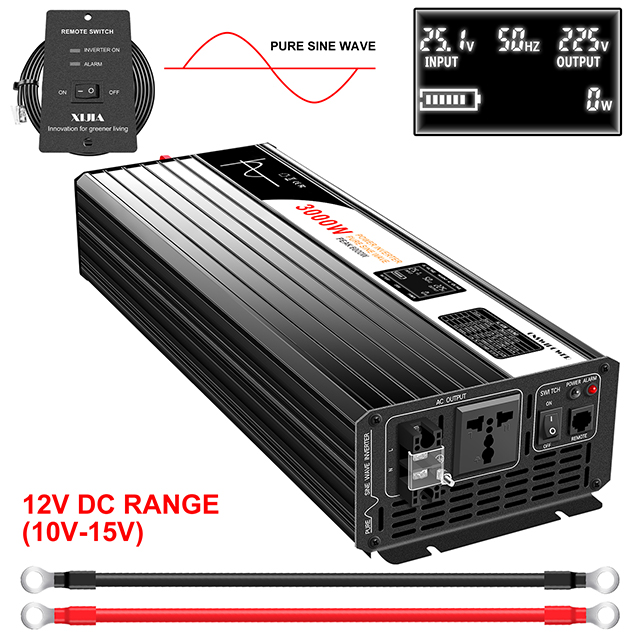

Pure Wave Inverter 3000W 24V

sp12/110-3000L / sp24/110-3000L / sp48/110-3000L
sp12/220-3000L / sp24/220-3000L / sp48/220-3000L
Availability:
Inquiry

  • SP12/24/48-3000L

  • CNSWIPOWER




Model sp12/120-3000L sp24/120-3000L sp48/120--3000L sp12/230--3000L sp24/230--3000L sp48/230--3000L
Continuous Power 3000W
Surge Power 6000W
Frequency 50HZ±0.5HZ or 60HZ±0.5HZ
Wave Form Pure Sine Wave
AC Regulation THD<3%(Linear Load)
Output Efficiency 92%
DC Voltage DC12V DC24V DC48V DC12V DC24V DC48V
AC Voltage 120VAC ±5% 230VAC ±5%
No Load Current Draw 1.6a 0.8a 0.4a 1.6a 0.8a 0.4a
DC Voltage Range 10-15V 20-30V 40-60V 10-15V 20-30V 40-60V
Low Voltage Shut Down 10±0.5V 20±0.5V 40±1V 10±0.5V 20±0.5V 40±1V
Over Voltage Shut Down 15±0.5V 30±0.5V 60±1V 15±0.5V 30±0.5V 60±1V
Low Voltage Recovery 12.5V 25V 50V 12.5V 25V 50V
Protection Low Voltage/Over Voltage LED Alarm and Automatic Recovery.
Overload LED Alarm and Automatic Recovery.
Over Temperature LED Alarm and Automatic Recovery.
Short Circuit LED Alarm and Automatic Recovery.
Working Temperature -10°- +50°
Storage Temperature -30°- +70°

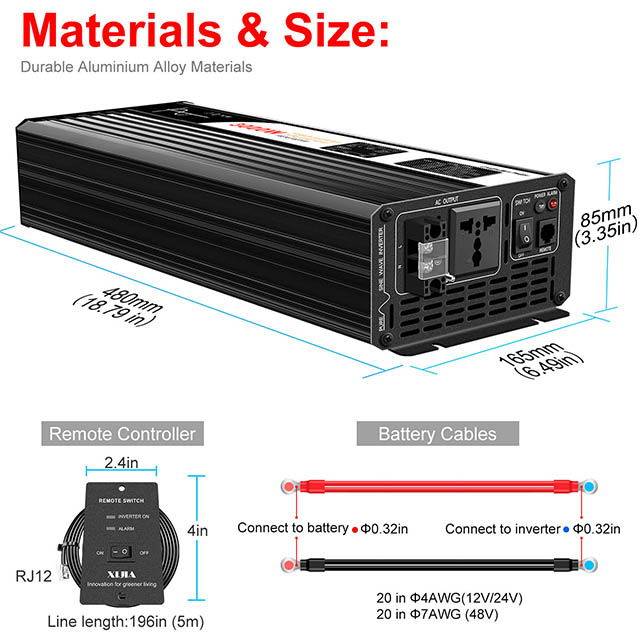

Production Size 475*165*85(mm)
Package Size 550*235*150(mm)
N.W/G.W 4.9/5.9(kg)
Start soft-start
Cooling Way Intelligent Cooling Fan

300013000230003300043000530006
