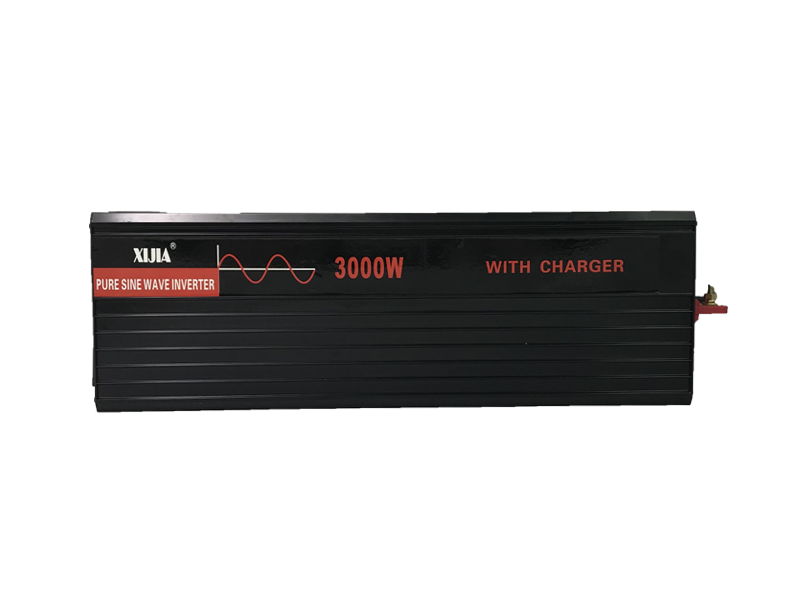

UPS 3000W Pure Sine Wave Inverter with Charger

sp12/220-3000L / sp24/220-3000L / sp48/220-3000L
Availability:
Inquiry

UPS 3000W pure sine wave inverter with charger
Modelsp12/220-3000LCsp24/220-3000LCsp48/220-3000LC
Continuous Power3000W
Surge Power6000W
Frequency50HZ or 60HZ
Wave FormPure Sine Wave
AC RegulationTHD<3%(Linear Load)
Output Efficiency92%
DC VoltageDC12VDC24VDC48V
AC Voltage220VAC
No Load Current Draw2a1a0.5a
DC Voltage Range10-15V20-30V40-60V
Low Voltage Shut Down10V20V40V
Over Voltage Shut Down15V30V60V
Low Voltage Recovery12.5V25V50V
Charging Voltage14.6V29.2V58.4V
Floating Charge Voltage13.8V27.6V55V
Charging Current≤10A≤5A≤2.5A
Transfer Time≤9MS≤9MS≤9MS
Grid Input Draw220V AC
ProtectionLow Voltage/Over VoltageLED Alarm and Automatic Recovery.
OverloadLED Alarm and Automatic Recovery.
Over TemperatureLED Alarm and Automatic Recovery.
Short CircuitLED Alarm and Automatic Recovery.
Working Temperature-10°- +50°
Storage Temperature-30°- +70°
Production Size560*165*85(mm)
Package Size650*235*185(mm)
N.W/G.W6.2/ 6.7(kg)
Warranty1Years
Cooling WayIntelligent Cooling Fan
